Description
Application:
- The machine mainly apply to multiple cabling of data cable,HDM wire cable, powercable,naked copperwire(fine wire),shielding layer cable, controlcable etc.
- Configuraiton: SIngle Stranding main unit, elecric control system, center wrapping machine, side-way giving wrap & wire device.

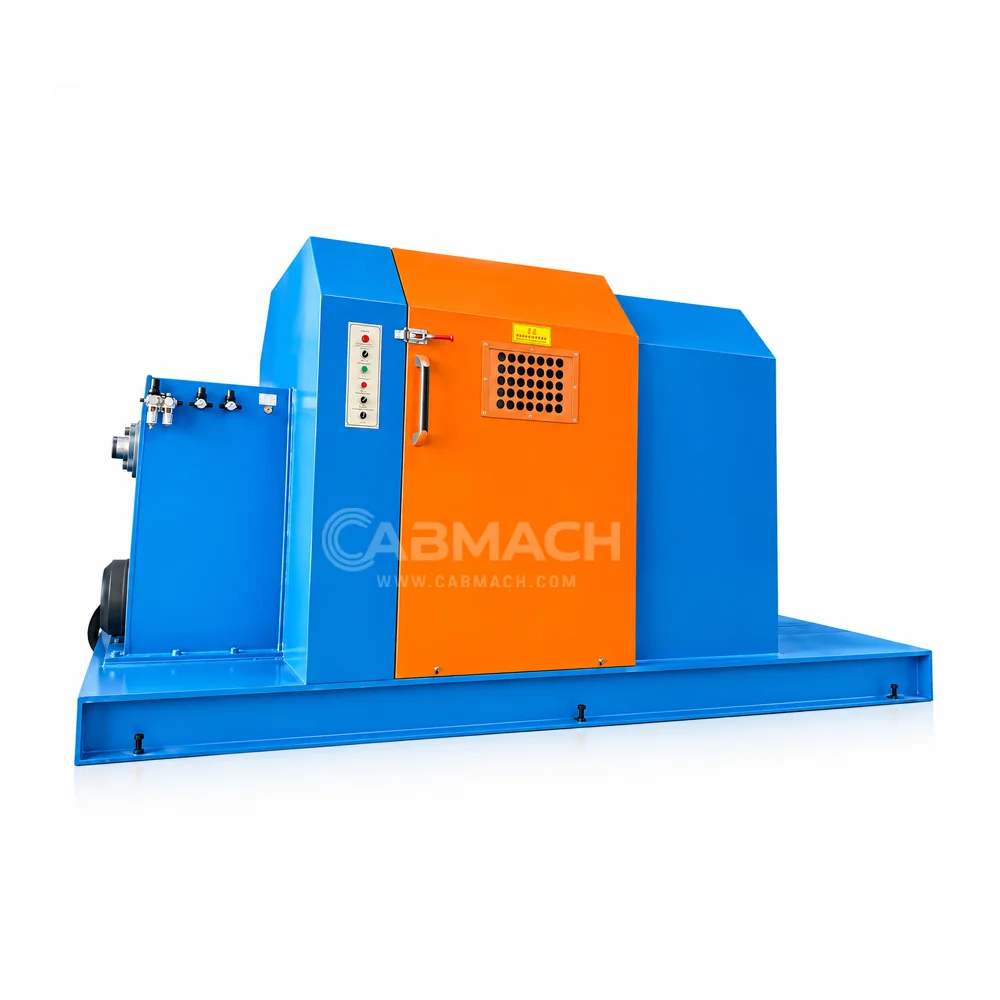

| SPECIFICATIONS —1000 mm Single Twist Cantilever Laying Machine | |
|---|---|
| Machine Model | CBM-LMST1000MM |
| Single Wire OD | Φ1.0-Φ5.0 mm |
| Max Stranding OD | Φ25 mm |
| Traverse Pitch | 3-30 mm |
| Speed | Max 500 rpm |
| Twisting Pitch | 20-400 mm |
| Pay-off bobbin size | Φ500-Φ630 mm |
| Take-off bobbin size | Φ1000 mm |
