Name: Planetary Stranding Machine
Brand: CABMACH
Availability: InStock

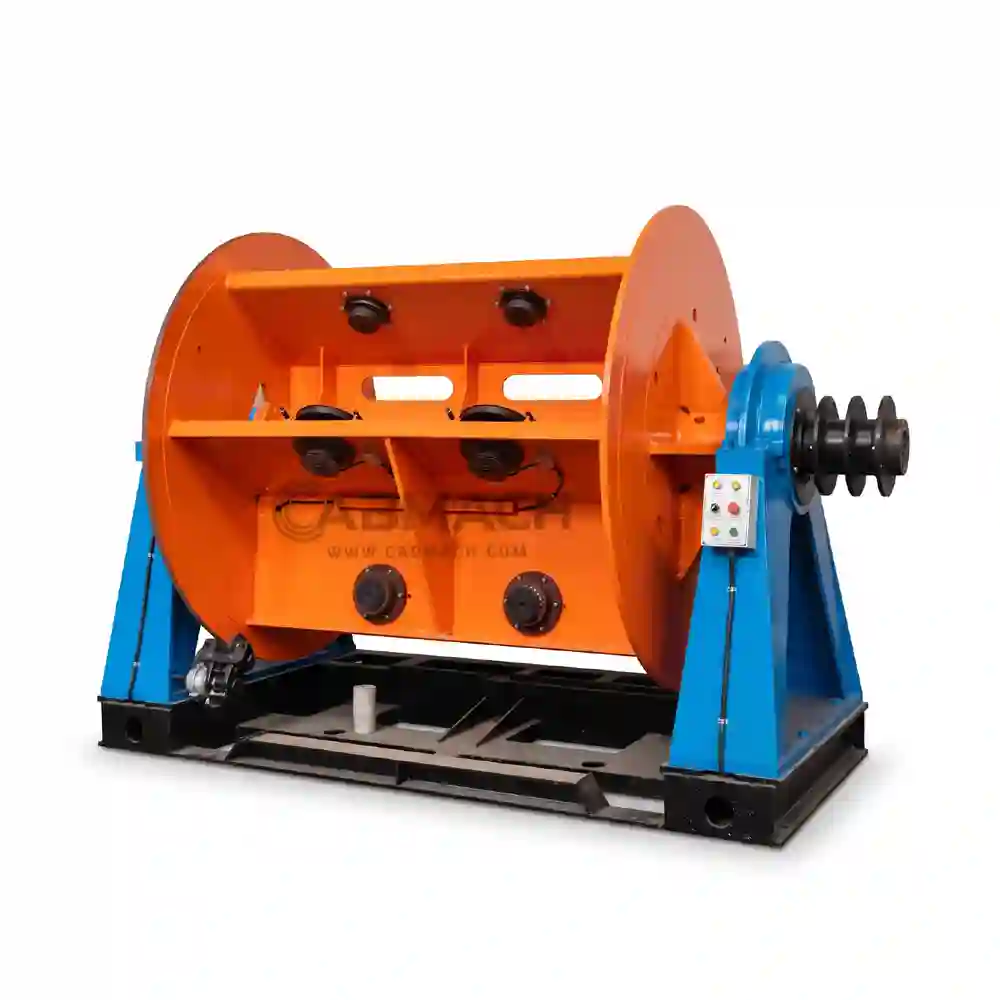

Planetary Stranding Machine

Configuration: Central pay-off device, mainframes of 6-bobbin, 12-bobbin, 18-bobbin, 24-bobbin and 30-bobbin, die holder, taping device, armouring device, traction, take-up and traverse device, transmission system and electric control system.
Application: The machine is used for stranding control cable, copper cores, ACSR, aluminum, copper conductor and also needed for making big section of steel stranded wire and steel wire ropes.

ISO Certified

Quality Assured

Pan India Delivery

7–14 Working Days

1-Year Warranty

Service Included

24/7 Support

Call: +91 9991448303

Description

SPECIFICATIONS: Planetary Stranding Machine
Model	CBM-400	CBM-500	CBM-630
Inlet wire Dia.	7 mm	10 mm	12 mm
Cage RPM	100 r/min	95 r/min	75 r/min
Stranding Pitch	44-766 mm	41.47-732.10 mm	50.2-900.5 mm
Taping speed	625 r/min
Taping Pitch	8.7-144.3 mm
Armoring Head Speed	550 r/mm
Armoring Head Pitch	8.7-144.3 mm

Technical specifications available on request. Contact our team.

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

Dedicated service team. AMC contracts available. Emergency support 24/7.

Standard 1-year warranty. Extended warranty available.
