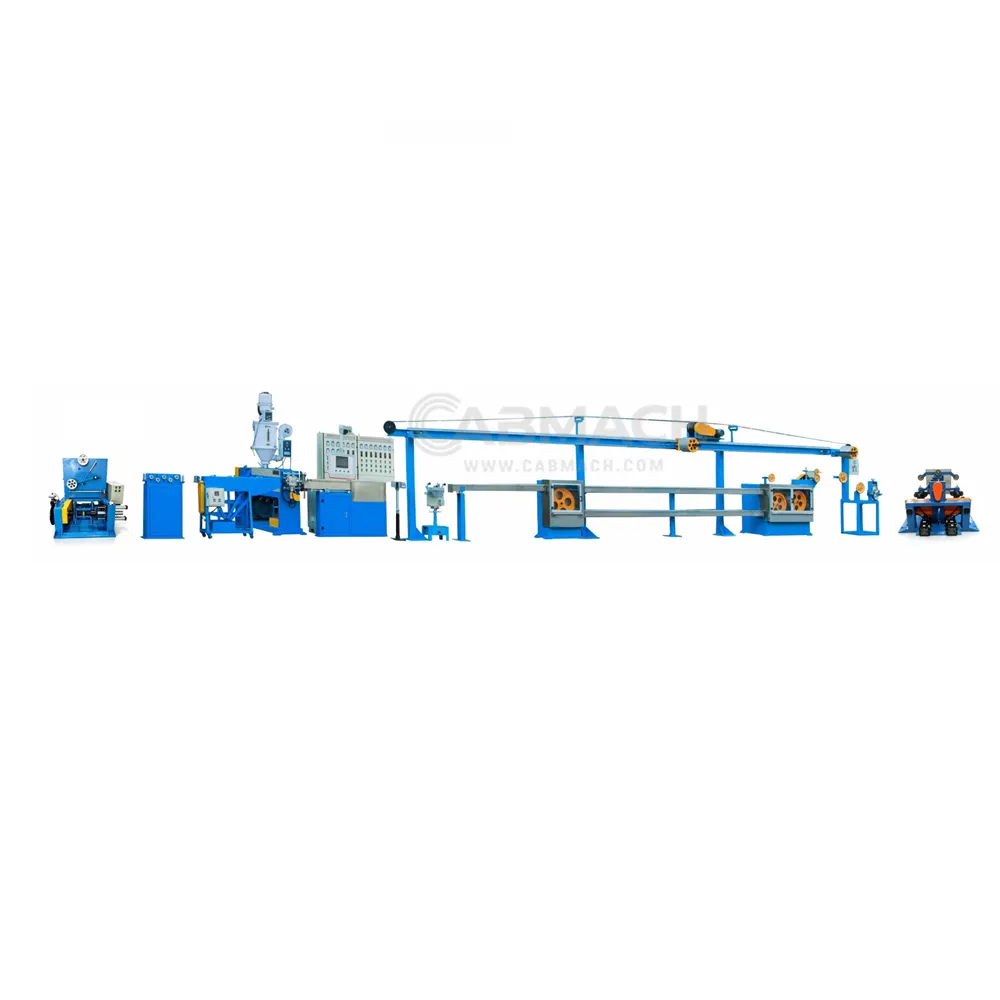

Name: 70 mm Cable Extruder Line
Brand: CABMACH
Availability: InStock

70 mm Cable Extruder Line

High-Speed Operation: Supports a maximum drawing speed of up to 120 rpm for efficient production.
Wide Wire Diameter Range: Handles wire diameters from 1 to 8 mm for versatile cable applications.
High Production Capacity: Delivers an output of up to 140 kg/h for demanding industrial production.
70 mm Screw System: Features a 70 mm screw with a 26:1 screw diameter proportion for reliable processing.
Powerful Feeding Performance: Supports a maximum feeding speed of 300 kg/h for continuous operation.
Flexible Take-up Configuration: Supports double-shaft, big-shaft, and shaft-free assembly options.
Large Pay-off Capacity: Supports pay-off diameters from 500 to 800 mm for extended production runs.

ISO Certified

Quality Assured

Pan India Delivery

7–14 Working Days

1-Year Warranty

Service Included

24/7 Support

Call: +91 9991448303

Description

SPECIFICATIONS — CBM-70MM
Machine Model	CBM-70MM
Pay-off Type	Double-shaft type / Big-shaft type / Shaft-free type
Pay-off Diameter (mm)	500 / 630 / 800
Screw Diameter (mm)	70
Screw Diameter Proportion	26 : 1
Max. Drawing Speed (rpm)	10–120
Output (kg/h)	140
Max. Feeding Speed (kg/h)	300
Host’s Power (kW)	22 / 30
Wire Diameter (mm)	1–8
Cooling System	Fold-away V shape or single (dual) layer U shape
Max. Accumulation Length (m)	250
Take-up Ratio (kW)	4 / 5.5
Linear Speed (m/min)	0–500
Take-up Type	Double-shaft type / Big-shaft type / Shaft-free assembly
Take-up Reel Diameter (mm)	500 / 630 / 800
Take-up Power	4 / 5.5

Technical specifications available on request. Contact our team.

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

Dedicated service team. AMC contracts available. Emergency support 24/7.

Standard 1-year warranty. Extended warranty available.
