Description

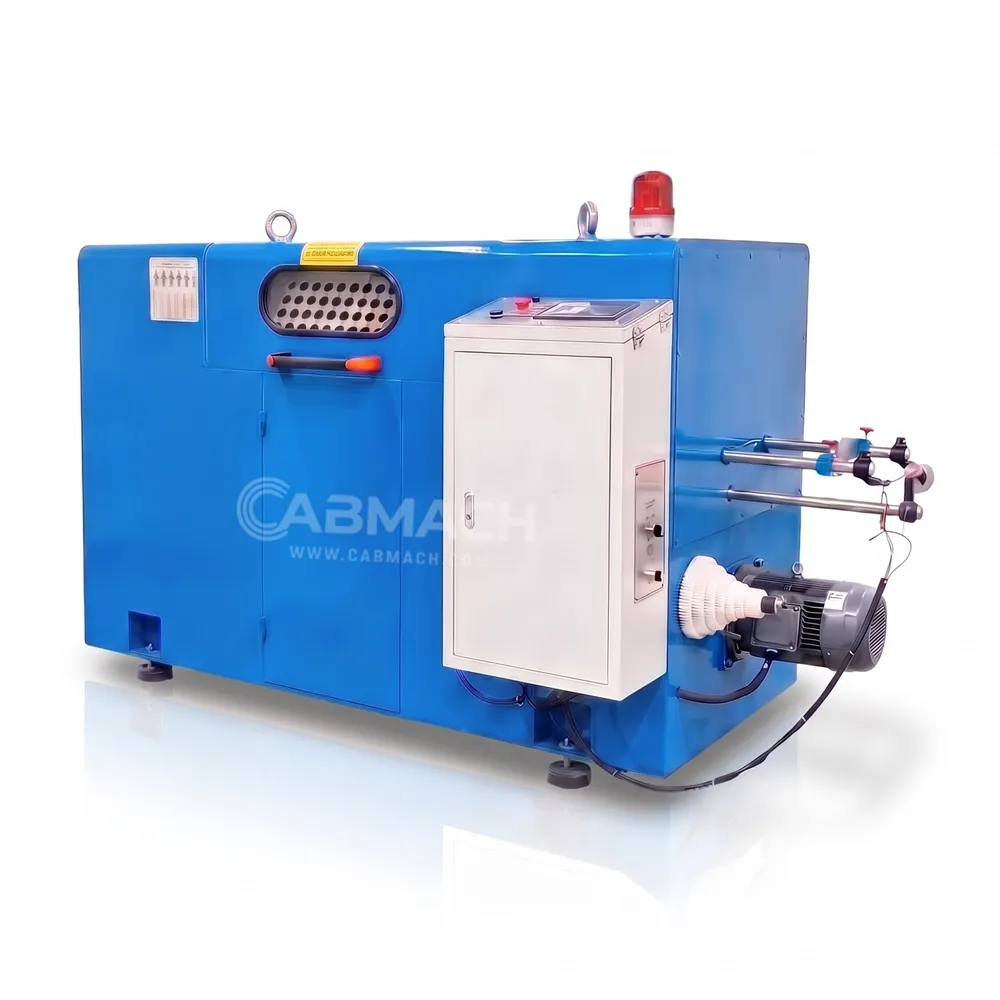

| SPECIFICATIONS – Φ630 mm | |
|---|---|
| Machine Model | CBM-Φ650 |
| Finished Wire Range | 16–26 AWG |
| Twisting Section | 0.80–6 mm² |
| Diameter of Single Wire | Φ0.16–1.0 mm |
| Twisting Distance | 4.2–130 mm |
| Gross Weight | MAX 400 kg |
| Maximum Rotation Speed | 1600 RPM (3200 turns/min) |
| Twisting Direction | Left or Right |
| Flat Cable | Polish rod traverse unit with adjustable pitch and throw. |
| Taking-Up Tension | Adjustable tension with no deformation of the pulled wire. |
| Auto-Stop Machine |
Automatic braking in case of wire breakage inside or outside the machine. Automatic meter counting with braking when the preset length is reached, with warning signals before the machine stops. |
| Machine Bearings | Main bearings made in Sweden; other bearings made in Japan. |
| Power | 10 HP controlled inverter |
| Noise Level | Approx. 80 dB |
| Machine Dimension | L2850 × W1500 × H1600 mm |
| Net Weight | Approx. 3300 kg |
