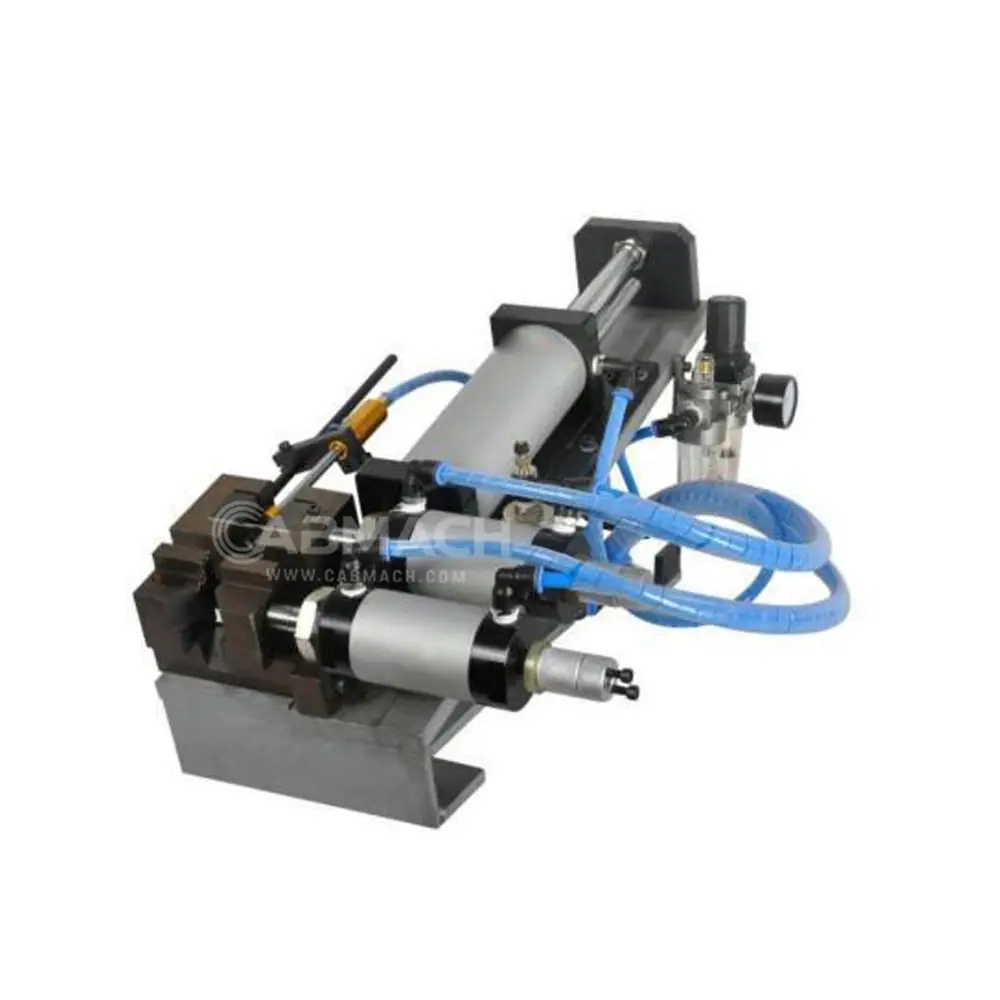

Pneumatic Wire Stripping Machine

Pneumatic Wire Stripping Machine

Features:

  • Slanted back base with scientific structure improves production speed.
  • Reciprocating dual air intake, fast action, no spring breakage worry, good stripping performance.
  • Adjustable speed structure for various AC/DC power cords, electronic wires, multi-core wires, special wires.
  • Choose different capacity models for different wire gauges.
  • Adjustable structure: blade width, wire clamp width, strip length based on wire.
ISO Certified
Quality Assured
Pan India Delivery
7–14 Working Days
1-Year Warranty
Service Included
24/7 Support
Call: +91 9991448303

Description

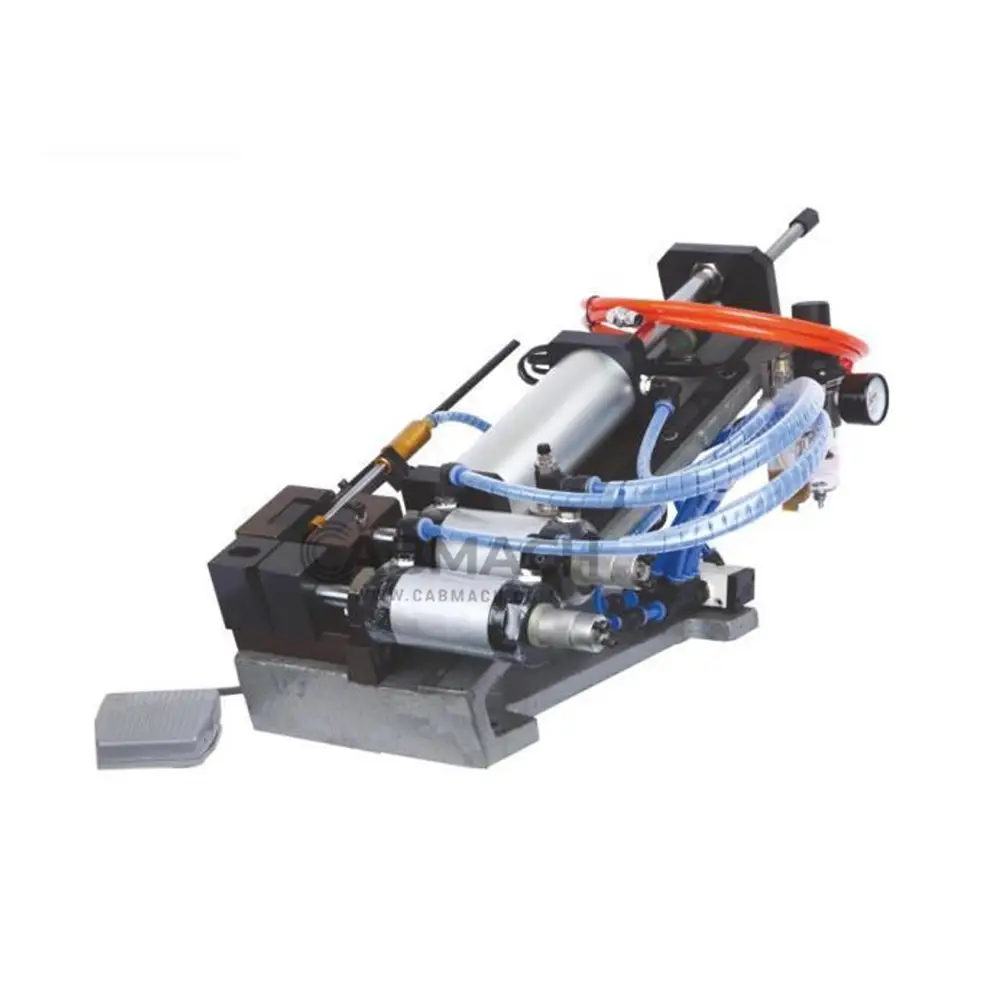

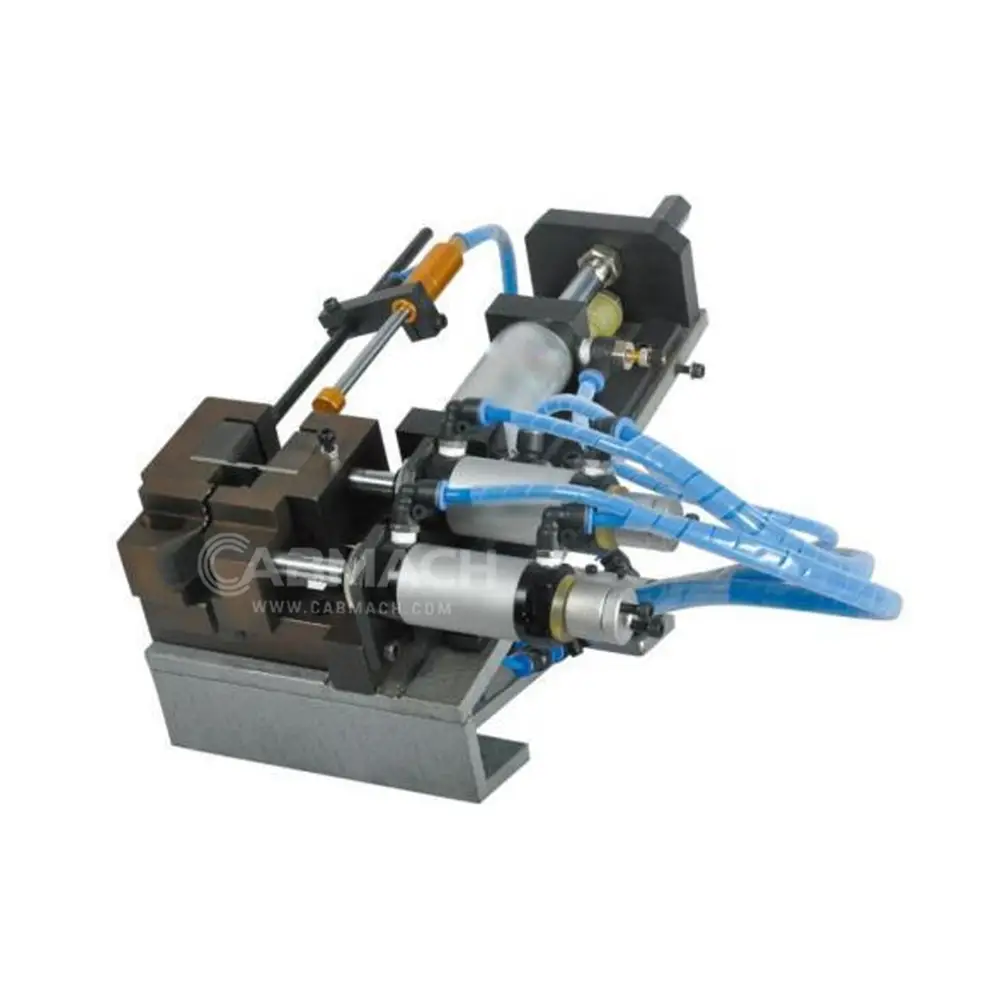

SPECIFICATIONS CBM-305 CBM-310 CBM-315
Machine Type Core Stripping Machine Core Stripping Machine Core Stripping Machine
Strip Length 50 mm 100 mm 150 mm
Air Supply 0.6–0.8 MPa (Clean, Dry Air)
Power Supply AC 220 V AC 220 V AC 220 V
Stripping Capacity 8 mm 15 mm 20 mm
Weight 20 kg 25 kg 35 kg
Machine Dimensions 400 × 300 × 270 mm (W × L × H) 480 × 330 × 280 mm (W × L × H) 660 × 390 × 340 mm (L × W × H)

Technical specifications available on request. Contact our team.

Delivery

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

After-Sales Support

Dedicated service team. AMC contracts available. Emergency support 24/7.

Warranty

Standard 1-year warranty. Extended warranty available.
