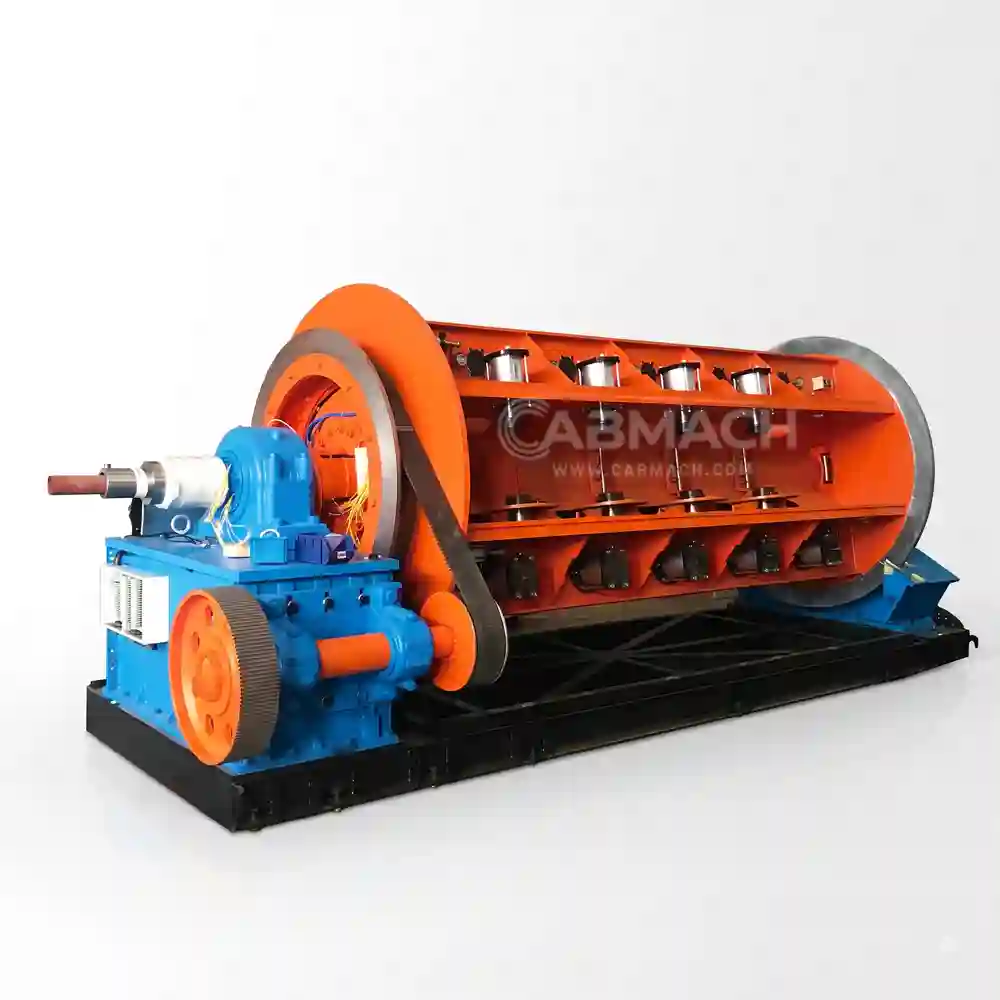

This machine mainly used for making large length of aluminum, copper and ACSR shaped conductor stranding, compacting, round conductor stranding and shaped spiral wire production.
| SPECIFICATIONS: Rigid Stranding Machine Side Bottom Auto Loading | |
|---|---|
| Model | CBM- |
| Single wire Dia. | Cu; Ø1.5-5.0 mm Al; Ø1.8-5.0 mm |
| Cage RPM | 230 r/min |
| Stranding Pitch | 44-1011 mm |
| Maxlinear speed | 60 m/min |
| Pay off in cage | PND630/710 |
| Capstan | Φ2000 mm |
| Take Up | 2500 mm |
Technical specifications available on request. Contact our team.
Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.
Dedicated service team. AMC contracts available. Emergency support 24/7.
Standard 1-year warranty. Extended warranty available.
Configuration: Central pay-off device, mainframes of 6-bobbin, 12-bobbin, 18-bobbin, 24-bobbin and 30-bobbin, die holder, taping...
Read more
Component: Rotary pay-off, guiding unit, assembling roller, filling stand, steel wire pay-off unit, steel wire...
Read more
