Name: Drum Twister
Brand: CABMACH
Availability: InStock

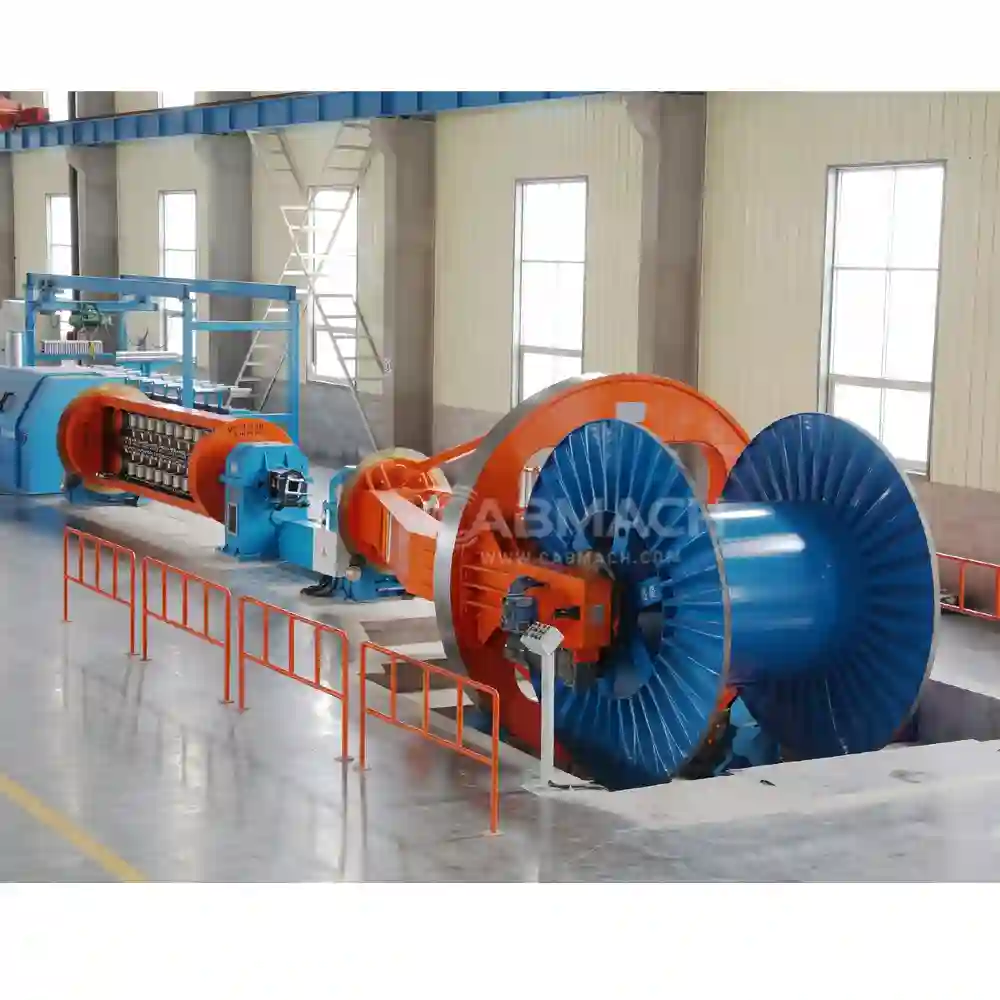

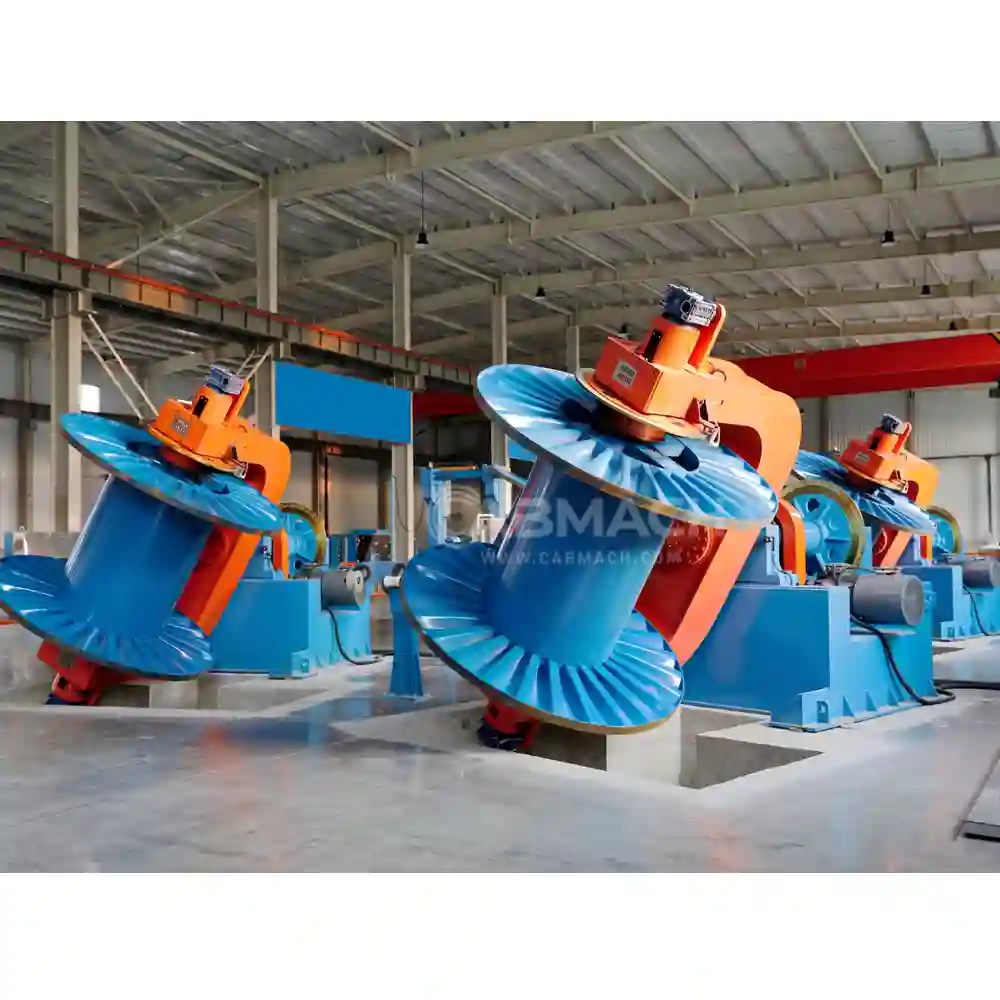

Drum Twister

Component: Rotary pay-off, guiding unit, assembling roller, filling stand, steel wire pay-off unit, steel wire armouring head, die holder, taping unit, rotary caterpillar, drum stranding pay-off, transmission system and electric control system.
Application: This machine mainly used for stranding large section or long length power cable, and can produce round or sector cable. It also can be used for armouring steel belts or wire and copper shield process.

ISO Certified

Quality Assured

Pan India Delivery

7–14 Working Days

1-Year Warranty

Service Included

24/7 Support

Call: +91 9991448303

Description

SPECIFICATIONS: Drum Twister
Model	CBM-2500	CBM-3150
Size of take-up bobbin	PN2500	PN3150
Cable OD	120 mm	140 mm
Cable pitch	200-800
Taping speed	625 r/mm
Taping Pitch	19-250 mm
Taping Width	20-60 mm
Stranding Speed	40 r/mm	35 r/mm
Producing Speed	55 r/mm	40 r/mm

Technical specifications available on request. Contact our team.

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

Dedicated service team. AMC contracts available. Emergency support 24/7.

Standard 1-year warranty. Extended warranty available.
