Name: 50 mm Cable Extruder Line
Brand: CABMACH
Availability: InStock

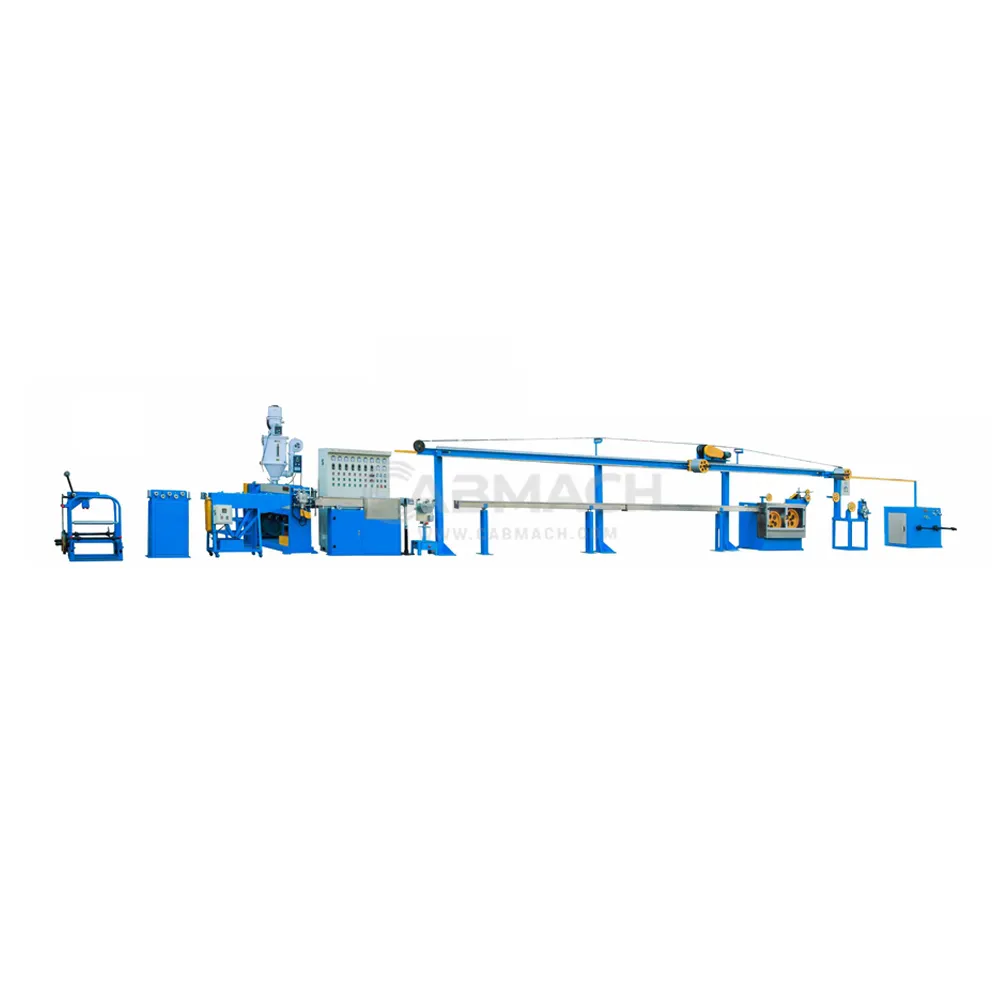

50 mm Cable Extruder Line

High-Speed Operation: Supports a maximum drawing speed of up to 120 rpm for efficient production.
Wide Wire Diameter Range: Handles wire diameters from 0.6 to 3 mm for versatile cable production.
High Production Output: Delivers an output capacity of up to 80 kg/h for continuous manufacturing.
Powerful Screw System: Features a 50 mm screw with a 26:1 screw diameter proportion.
High Feeding Capacity: Provides a maximum feeding speed of 300 kg/h for stable material processing.
Flexible Take-up System: Supports double-shaft, big-shaft, and shaft-free assembly configurations.
Large Accumulation Capacity: Provides up to 250 m maximum accumulation length for smoother production flow.

ISO Certified

Quality Assured

Pan India Delivery

7–14 Working Days

1-Year Warranty

Service Included

24/7 Support

Call: +91 9991448303

Description

SPECIFICATIONS — CBM-50MM
Machine Model	CBM-50MM
Pay-off Type	Double-shaft type / Big-shaft type / Shaft-free type
Pay-off Diameter (mm)	400 / 500 / 630
Screw Diameter (mm)	50
Screw Diameter Proportion	26 : 1
Max. Drawing Speed (rpm)	10–120
Output (kg/h)	80
Max. Feeding Speed (kg/h)	300
Host’s Power (kW)	11 / 15
Wire Diameter (mm)	0.6–3
Cooling System	Fold-away V shape or single (dual) layer U shape
Max. Accumulation Length (m)	250
Take-up Ratio (kW)	2.2
Linear Speed (m/min)	0–600
Take-up Type	Double-shaft type / Big-shaft type / Shaft-free assembly
Take-up Reel Diameter (mm)	500 / 630
Take-up Power	2.2

Technical specifications available on request. Contact our team.

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

Dedicated service team. AMC contracts available. Emergency support 24/7.

Standard 1-year warranty. Extended warranty available.
