Description

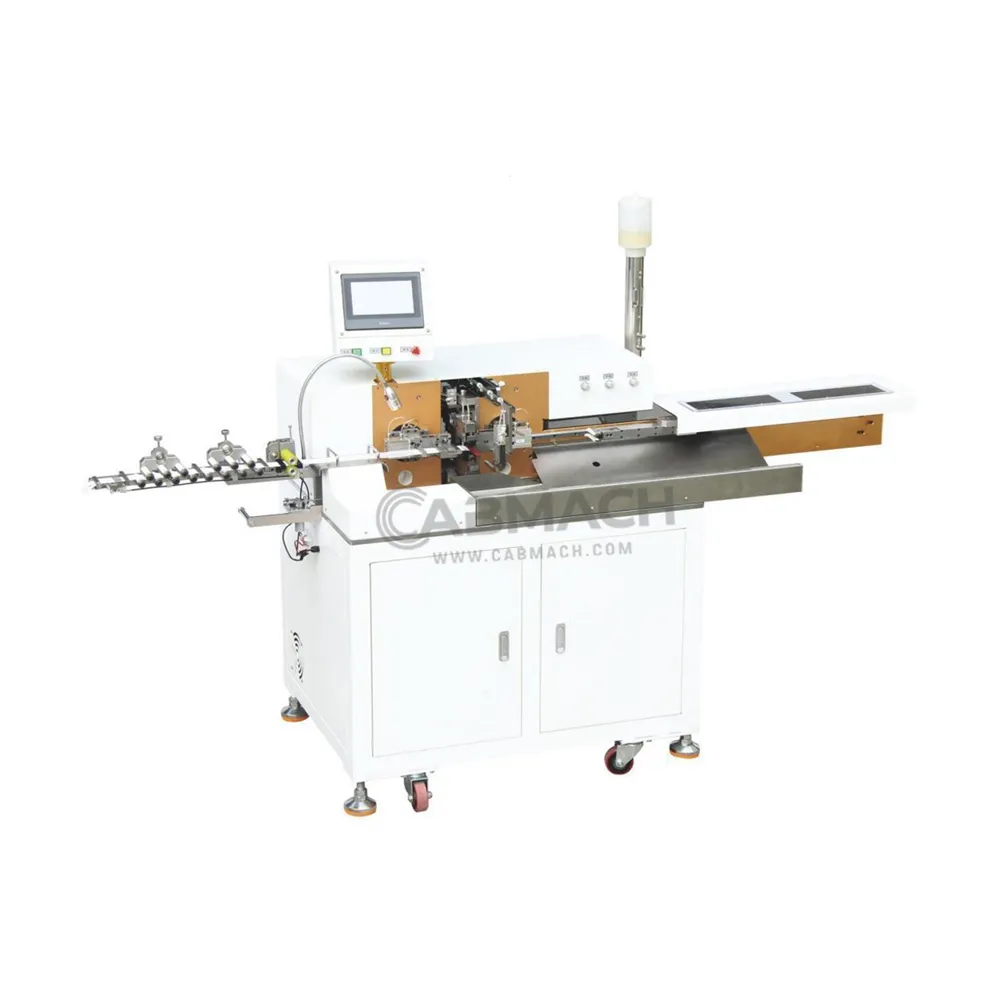

| TECHNICAL SPECIFICATIONS — Automatic Cutting Stripping Twisting & Tinning Machine | |
|---|---|
| Machine Model | CBM- |
| Power Supply | AC220V/ 50Hz |
| Functions Capabilities | Wire cutting, single-end stripping, dual-end stripping, single-end twisting, dual-end twisting, single-end tin dipping, dual-end tin dipping |
| Applicable Wires | AWG32#-AWG16# (Larger than #16 can add wire holes, depends on wire type) |
| Capacity | Hourly Efficiency: 1,300-1,400 cycles / 6,000-12,000 pcs (L=100mm, varies with wire size/length) |
| Braid Wire Diameter | 4 × Φ0.08–9 × Φ0.20 |
| Cut Length | Standard machine 8-850mm, 5-1,500mm (Long wires customizable) |
| Strip Length | 0.1mm-11.5 mm |
| Tin Dip Length | 0.5mm-10.5mm (Standard range) (Adjustable) |
| Twist Length | 2mm-10.5mm (Adjustable) |
| Applicable Wires | Electronic wire, high-temperature wire, Teflon wire, etc. |
| Twisting Method | Digital operation (Motor-driven) |
| Air Pressure | 6-8 kgf/cm² |
| Transmission Structure | Precision ball screw, guide rail, reducer |
| Detection Functions | ·Wire Missing ·Wire Knotting ·Air Pressure Monitoring |
| Dimensions | 1,720x750x1,400 mm |
| Weight | 380 kg |
