Name: 60 mm Cable Extruder Line
Brand: CABMACH
Availability: InStock

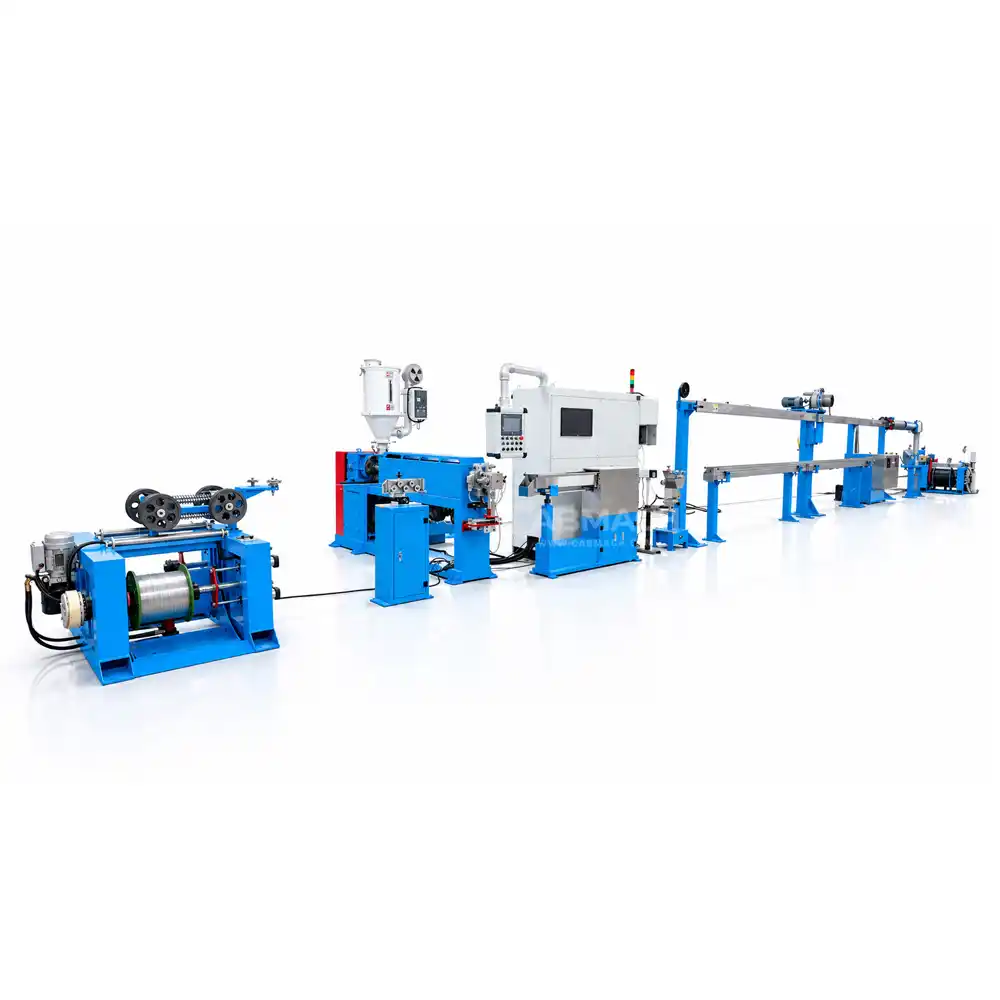

60 mm Cable Extruder Line

High-Speed Performance: Achieves a maximum drawing speed of up to 120 rpm for productive operation.
Extended Wire Range: Processes wire diameters from 1 to 5 mm for diverse cable manufacturing needs.
Higher Production Output: Provides an output capacity of up to 100 kg/h for efficient production.
60 mm Screw System: Uses a 60 mm screw with a 26:1 screw diameter proportion for consistent processing.
Efficient Feeding: Supports feeding speeds of up to 300 kg/h for continuous material supply.
Flexible Take-up Options: Supports multiple shaft configurations with reel diameters up to 1250 mm.
Long Accumulation Length: Provides up to 250 m accumulation capacity to maintain smooth production flow.

ISO Certified

Quality Assured

Pan India Delivery

7–14 Working Days

1-Year Warranty

Service Included

24/7 Support

Call: +91 9991448303

Description

SPECIFICATIONS — CBM-60MM
Machine Model	CBM-60MM
Pay-off Type	Double-shaft type / Big-shaft type / Shaft-free type
Pay-off Diameter (mm)	400 / 500 / 630
Screw Diameter (mm)	60
Screw Diameter Proportion	26 : 1
Max. Drawing Speed (rpm)	10–120
Output (kg/h)	100
Max. Feeding Speed (kg/h)	300
Host’s Power (kW)	15 / 22
Wire Diameter (mm)	1–5
Cooling System	Fold-away V shape or single (dual) layer U shape
Max. Accumulation Length (m)	250
Take-up Ratio (kW)	2.2 / 4
Linear Speed (m/min)	0–600
Take-up Type	Double-shaft type / Big-shaft type / Shaft-free assembly
Take-up Reel Diameter (mm)	500 / 630 / 800 / 1250
Take-up Power	2.2 / 4

Technical specifications available on request. Contact our team.

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

Dedicated service team. AMC contracts available. Emergency support 24/7.

Standard 1-year warranty. Extended warranty available.
