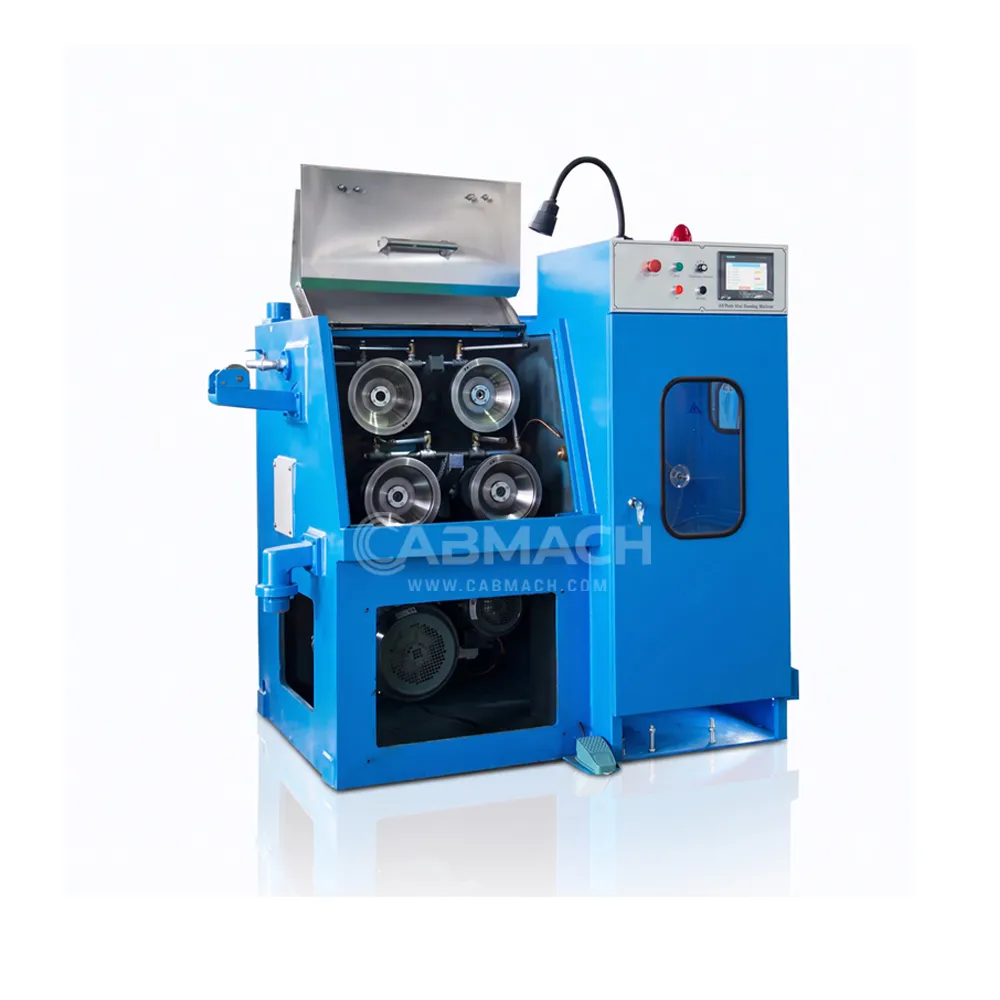

Name: Super Fine Wire Drawing Machine 24 Die
Brand: CABMACH
Availability: InStock

Super Fine Wire Drawing Machine 24 Die

Double Inverter Control: Provides coordinated control for stable and efficient wire drawing operation.
24 Die Configuration: Supports up to 24 drawing dies for precise multi-stage wire reduction.
High-Speed Drawing: Achieves a maximum line speed of up to 1800 m/min for productive operation.
Fine Wire Processing: Supports outlet wire diameters from Φ0.04 to Φ0.12 mm.
Ceramic Plasma Capstan: Features a ceramic plasma drawing capstan for reliable wire handling.
Precision Capstan System: Uses a Φ120 mm fixed-speed capstan for stable drawing performance.
Efficient Take-up System: Combines a synchronous motor and belt drive with Φ250 mm take-up bobbins.

ISO Certified

Quality Assured

Pan India Delivery

7–14 Working Days

1-Year Warranty

Service Included

24/7 Support

Call: +91 9991448303

Description

SPECIFICATIONS — Super Fine Wire Drawing Machine 24 Die
Machine Type	CBM-24VD
Inverter Control	Double Inverter Control
Main Machine Structure	Horizontal Two Cones in Horizontal
Outlet Diameter (mm)	Φ0.04–Φ0.12
Max. Die No.	24
Max. Line Speed (m/min)	1800
Drawing Capstan	Ceramic Plasma Capstan
Slip Ratio of Machine (%)	10.5
Main Motor Power (kW)	4
Take-up Motor Power (kW)	2.2
Fixed Speed Capstan Diameter (mm)	Φ120
Transmission Type	Belt
Take-up Bobbin Size (mm)	Φ250
Take-up Type	Synchronous Motor + Belt
Tension Control	Weight Balance Type
Lubrication Type	Spray Type
Brake	Disc Type
