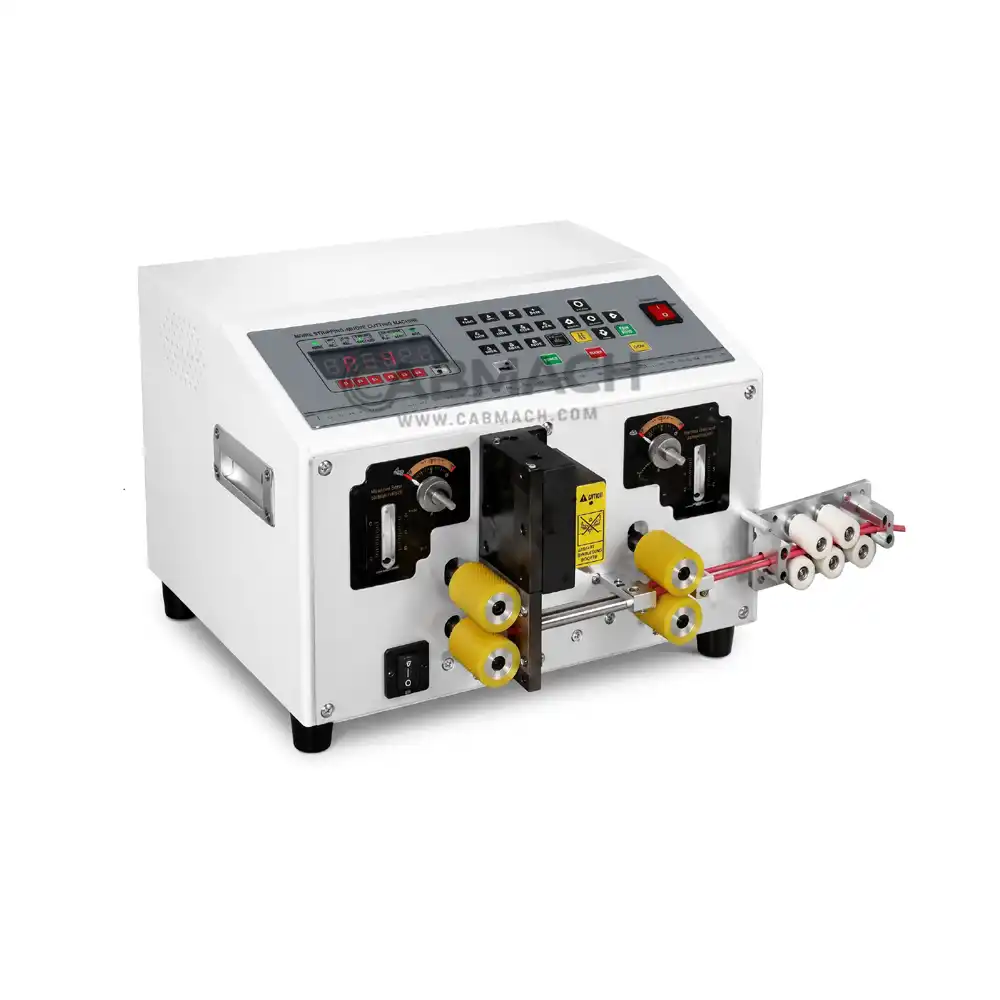

Wire Cutting Stripping Machine CBM-320

Wire Cutting Stripping Machine CBM-320

Features:

  • Wide Wire Compatibility — Handles AWG#14–AWG#32 wires with a wire gauge range of 0.1–4 mm², depending on wire type.
  • Precision Cutting Range — Provides adjustable cut lengths from 0.1 to 99,999 mm for flexible wire processing requirements.
  • Flexible Strip Length — Supports front stripping up to 35 mm, rear stripping up to 50 mm, and 3-stage stripping up to 999 mm.
  • Tungsten Blade System — Uses durable tungsten blades for consistent and precise wire cutting and stripping performance.
  • Four-Wheel Drive System — Features a four-wheel, two-drive mechanism for stable and controlled wire feeding.
  • Adjustable Cutting Speed — Offers cutting speeds from 1–9 with adjustable settings for different wire processing applications.
ISO Certified
Quality Assured
Pan India Delivery
7–14 Working Days
1-Year Warranty
Service Included
24/7 Support
Call: +91 9991448303

Description

TECHNICAL SPECIFICATIONS — Cutting Stripping Machine CBM-320
Machine Model CBM-320
Applicable Wires AWG#14-AWG#32(Wire-dependent)
Cut Length 0.1-99,999 mm
Strip Length Front:0-35mm;Rear:0-50mm(Wire-dependent);3-stagestripupto999mm
Wire Gauge  0.1-4mm²
Cutting Speed 1-9 (Adjustable)
Blade Material Tungsten
Wire Guide ID 1-3 mm
Drive Method Four-wheel Two-drive
Power Supply AC220V,50Hz
Dimensions 450x450x360 mm
Weight 33 Kg

Technical specifications available on request. Contact our team.

Delivery

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

After-Sales Support

Dedicated service team. AMC contracts available. Emergency support 24/7.

Warranty

Standard 1-year warranty. Extended warranty available.
