Waste Cable Recycling Machine

Waste Cable Recycling Machine

  1. High Processing Capacity — Handles 300–500 kg/h of scrap copper wire for efficient recycling operations.
  2. Wide Wire Size Range — Processes waste copper wires from 1 mm to 25 mm in size.
  3. High Separation Rate — Achieves a reliable 97–99% separation rate for efficient material recovery.
  4. Powerful 45 kW Motor — Built with a 45 kW drive system for stable heavy-duty recycling performance.
  5. Industrial 3-Phase Design — Operates on 3-phase 380 V power and delivers dependable continuous processing.
ISO Certified
Quality Assured
Pan India Delivery
7–14 Working Days
1-Year Warranty
Service Included
24/7 Support
Call: +91-9991448303

Description

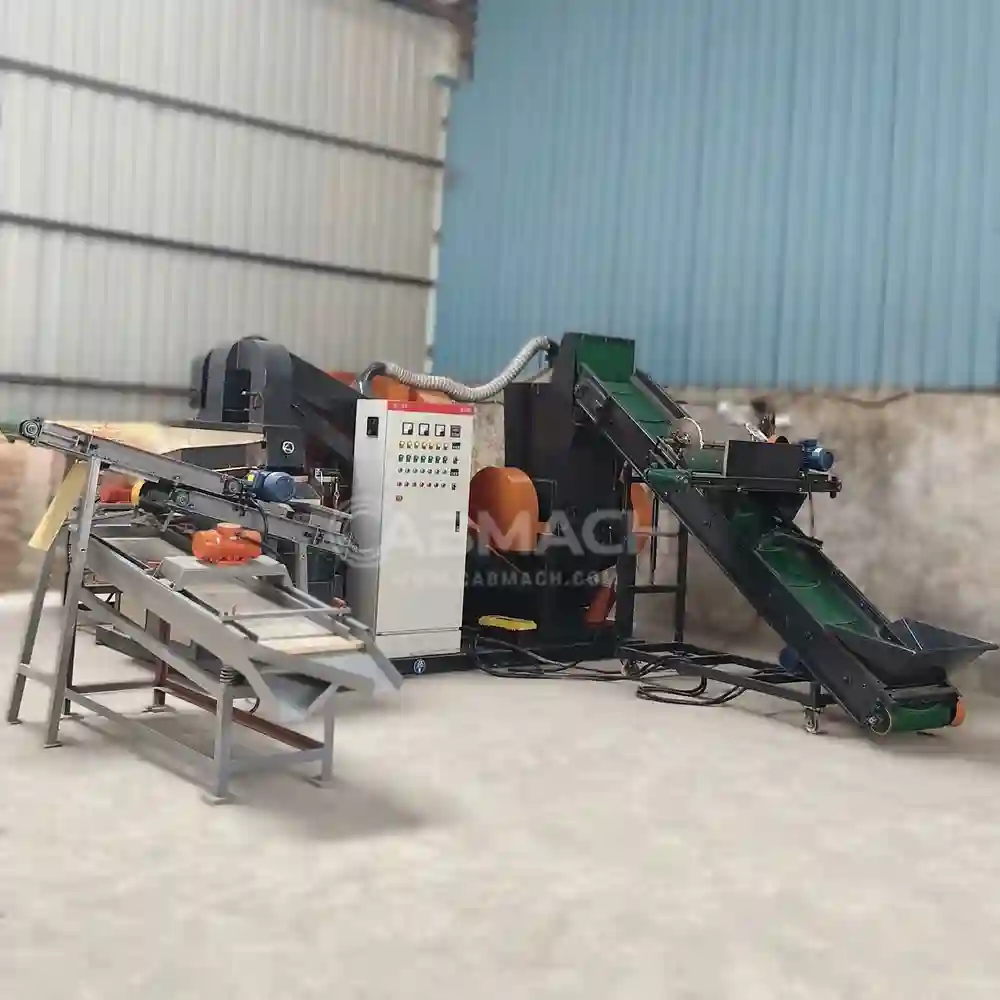

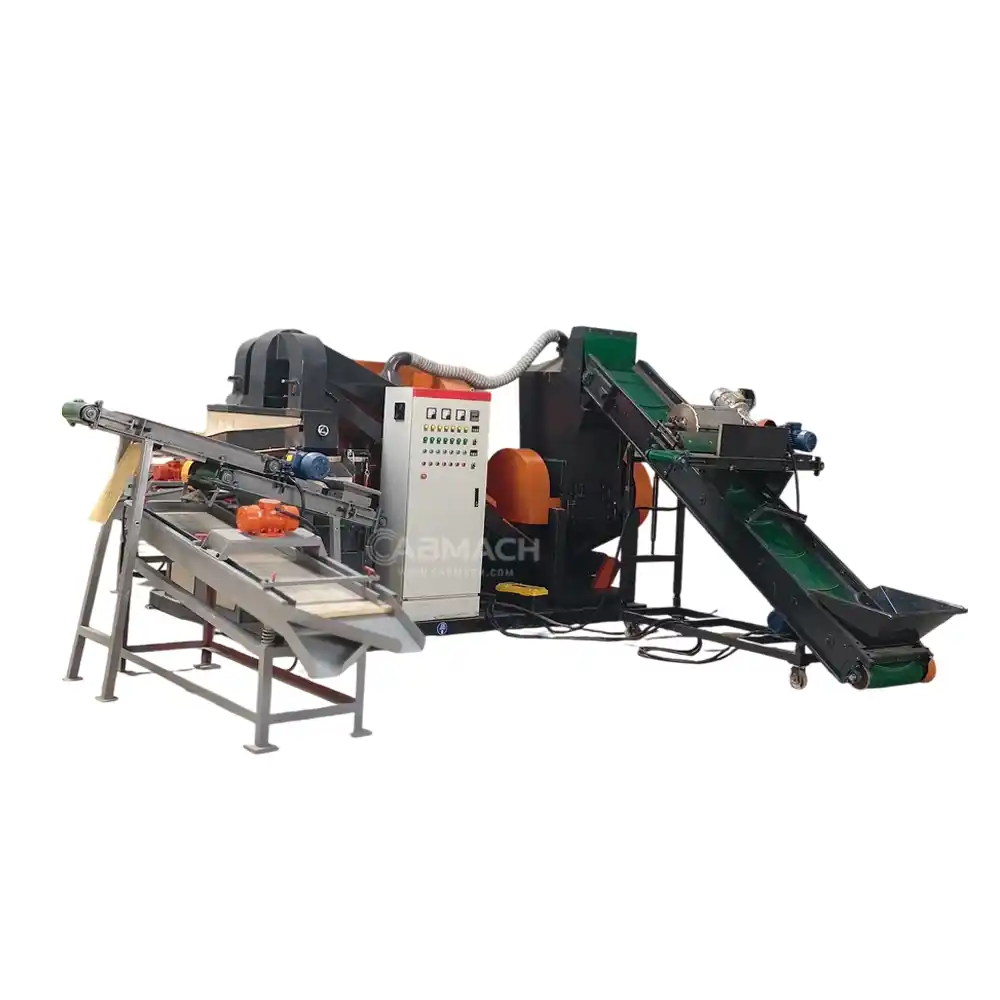

  • The Copper Wire Scrap Shredder is the machine used to crush waste copper wires to separate copper from plastics.
  • This Machine first crushes the scrap copper wire and then performs vibration separation and airflow sorting according to the specific gravity of copper and PVC plastic, which then completely separate the copper and plastic.
  • The Machine is equipped with an advanced dust collector system for collecting dust when machine is working.
SPECIFICATIONS —Waste Cable Recycling Machine
Machine Model CBM-600Q
Motor Voltage 3 Phase 380 V
Power 45 kW
Raw Material Scrape copper wire
Capacity 300-500 kgs/h
Processed wire size 1 mm to 25 mm
Separation Rate 97-99%
Net Weight 3200-3500 kgs

Technical specifications available on request. Contact our team.

Delivery

Pan India delivery available. Estimated delivery: 7–14 working days post order confirmation.

After-Sales Support

Dedicated service team. AMC contracts available. Emergency support 24/7.

Warranty

Standard 1-year warranty. Extended warranty available.
